WSV3 Version 4.0

[Paul]

Partial listing of new features/fixes/additions in incredible V4.0 update, free for all existing WSV3 Professional customers, in development since January 2017:

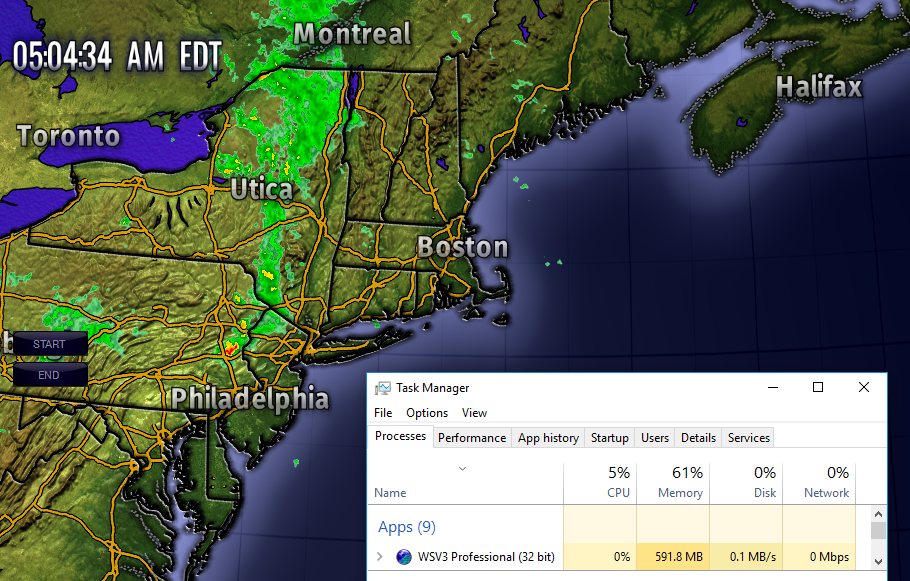

1) Rewritten, highly-optimized DirectX11 rendering engine with reduced CPU usage and optimized GPU programming techniques


2) Broadcast-grade, rewritten, quad-tree-tiled, high-performance vector rendering engine for stunning line/polygon graphics with near-zero CPU usage after initial tile computation
--Usage of DirectX11 geometry shaders and industrial vector-tiling algorithm enables TV grade vector mapping graphics on low-end consumer hardware

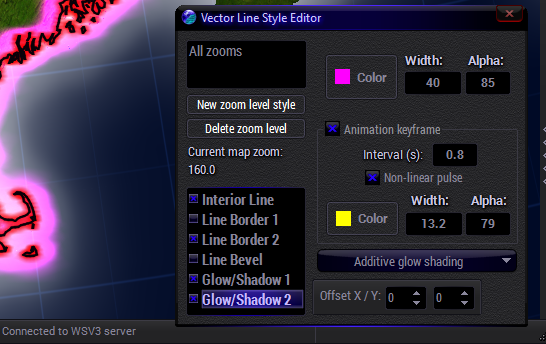

--Extensive line visual customization styles including shadow, multiple stroke passes, bevel, glow, fade + animated color/width/flash effects + additive blending
--Extensive polygon visual customization styles inlcuding animated patters, color/texture overlay, time transition animated effects, and additive/alpha blending
--Full integration of new vector engine into program layers

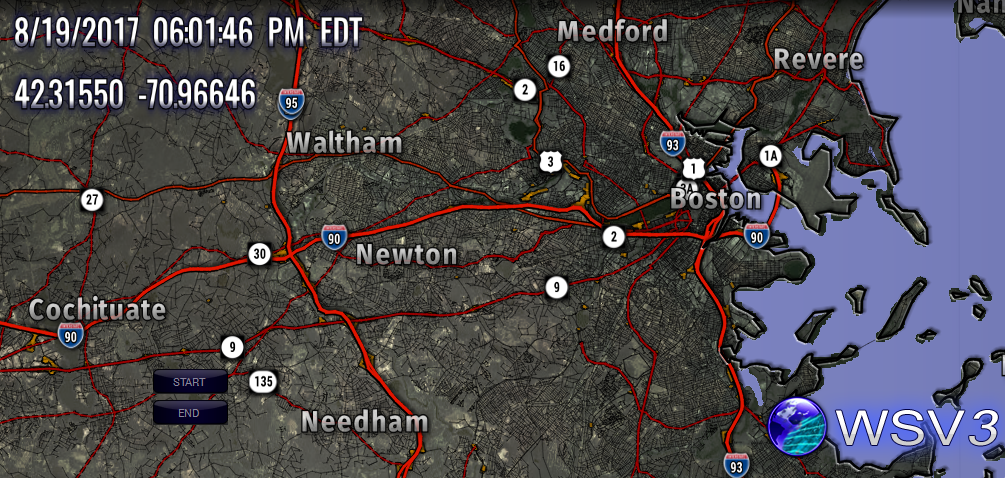

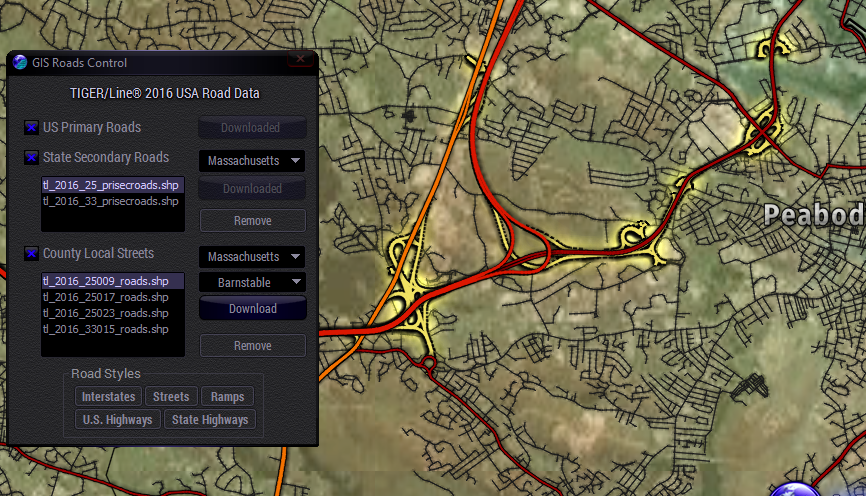

3) Rewritten GIS vector mapping engine based off new vector rendering engine; automated TIGER/Line 2016 road data importation with global road level styles and interstate/highway/route sign labeling engine
--Seamless rendering of vector data across full screen with very low CPU overhead, as opposed to static square-area-culled CPU-intensive old system which required still camera to recompute ugly, CPU intensive GIS layers
--Full importation and custom styling of ESRI shapefiles with hardware-acclerated GPU vector rendering

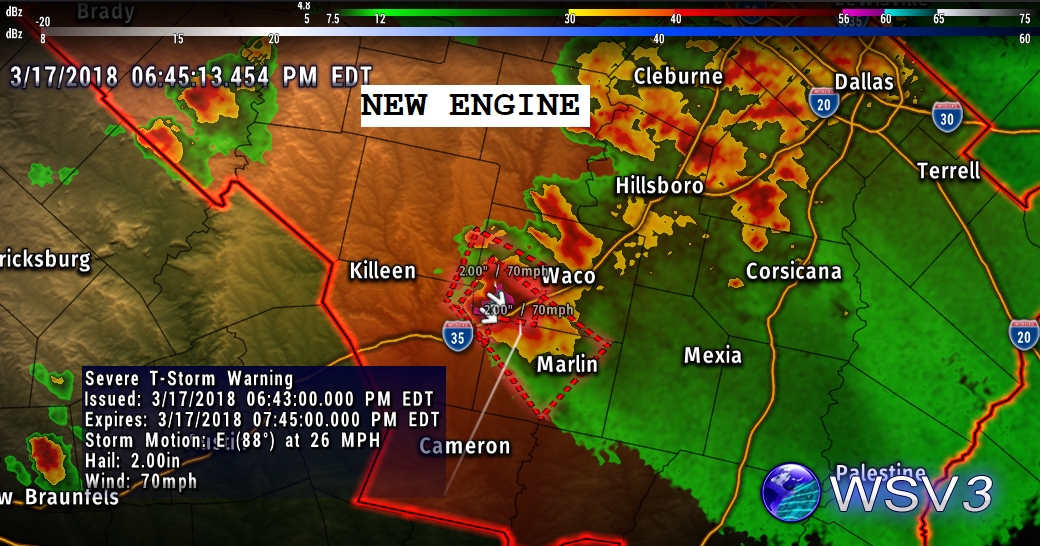

4) Unique warning-based cell/line object visualization and tracking object display
--Click on tracking object cell or path to extrapolate forecast cone/extrusion + city ETA list

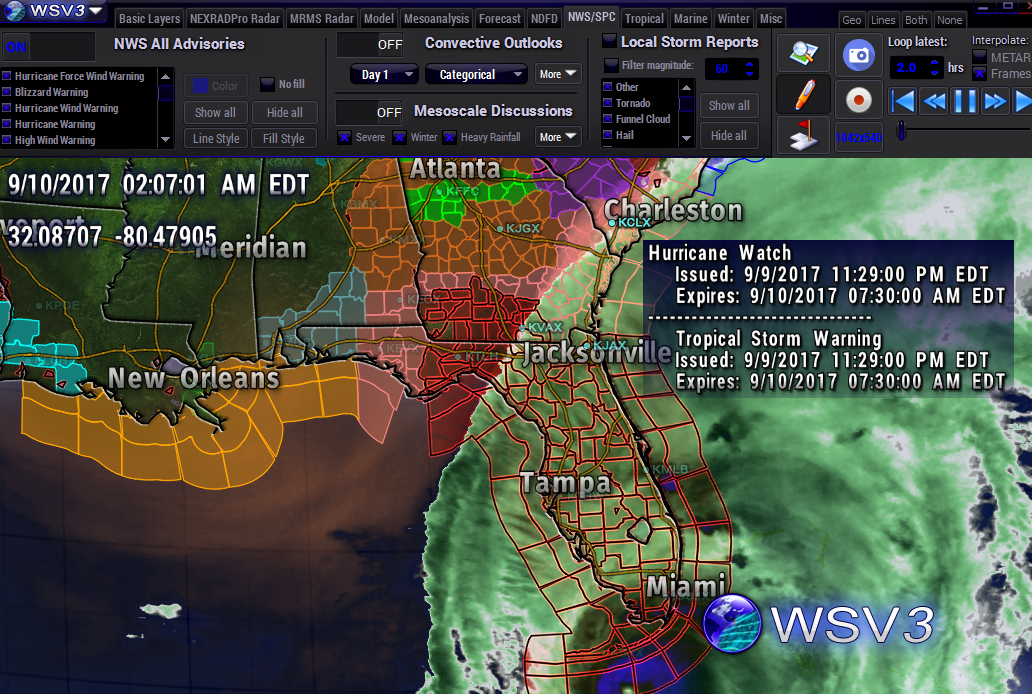

--Click-based warning info text with customizable Impact field display
--Customizable 3D map labels displaying Impact fields

5) Brand-new, rewritten Model Data system, integrating the non-GRIB-file-viewing "practical" capabilities of AtmoGraph (AtmoGraph should be considered only a GRIB file viewer)

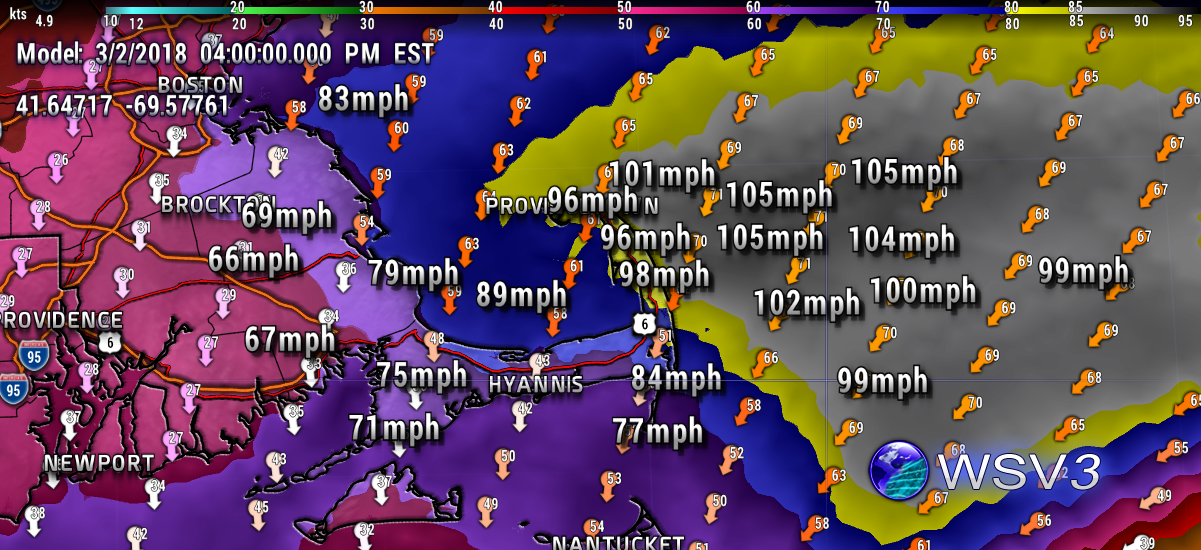

--Addition of highly-demanded animated/forecast loop model data timeline
--New models and unlimited products added with customizable model index editor
--High-speed frame selector or animated loop builder + 3 rendering channels

6) Brand new licensing system which permits instantaneous, immediate, and unlimited automatic license transfers with your V4.0 license

7) Addition of highly-demanded "Layer Presets" (preset layer configurations) window + fast switcher/loader of present configurations

8) Rewritten, highly-optimized Placefile display/rendering system in new engine far more CPU efficient than old code

9) More efficient updating with separate Base Installer and Update Installer

10) Countless small improvements and bug fixes
--New "framebuffer effects" visual rendering effect improves look at allows custom user pixel shader development
--Added significant probabilities to Convective Outlooks in separate layer (integrated layer next step)
--Fixed severe watch text source
--Fixed font spacing issues
--Updated video capture libraries
